Trailer Tongue Weight Calculator: Estimate Load Balance Before You Tow

Tongue weight is the downward force the trailer puts on the hitch ball. Too little tongue weight can make the trailer feel loose and twitchy. Too much can overload the hitch, squat the tow vehicle, and take steering authority away from the front axle.

Most bumper-pull trailers tow best when tongue weight lands in a target percentage of total loaded trailer weight. For many utility, enclosed, travel, and car-hauler trailers, that target is commonly 10-15%. Boat trailers often run lighter, commonly around 5-10%, because the hull and axle placement are different.

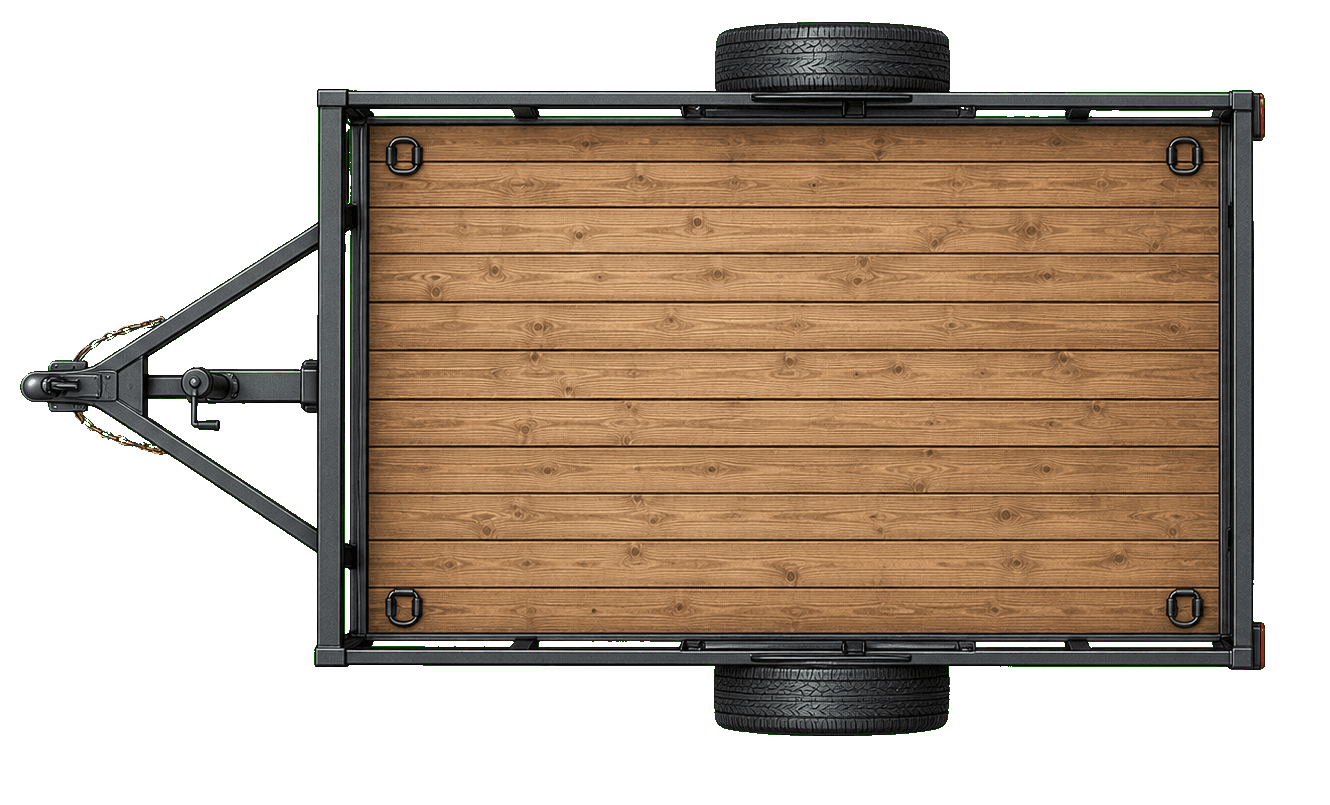

The calculator below estimates tongue weight from trailer geometry and cargo placement. The top-down trailer artwork is representative, so use your real measurements in the setup fields, then move each load to match where its center of weight will sit on your trailer.

How the Calculator Works

The calculator treats the hitch ball as the front support point and the axle group as the rear support point. For a single-axle trailer, the axle support point is the axle centerline. For a tandem or triple-axle trailer, it uses the center of the axle group.

Every weight on the trailer creates leverage based on how far it sits from the tongue. A heavy object forward of the axle group increases tongue weight. A heavy object near or behind the axle group decreases tongue weight and can push the trailer toward sway. In the visual load map, the distance tag follows the selected load so you can see the lever arm change as you move cargo.

The estimate uses three pieces of information:

• Trailer geometry: number of axles, distance from tongue to first axle, and spacing between axles.
• Empty trailer baseline: empty trailer weight and empty tongue weight.
• Cargo placement: each load's weight and distance from the tongue.

Empty tongue weight is easier to find than an empty balance point. RV spec sheets may call it dry hitch weight. For utility and cargo trailers, you may need to measure it with a tongue-weight scale or compare axle and total weights at a truck scale.

Measure From the Same Point Every Time

Pick one reference point at the front of the trailer, usually the center of the coupler where the hitch ball sits. Measure every distance from that point.

For the axle measurement, measure from the coupler to the centerline of the first axle. If the trailer has more than one axle, measure the spacing from one axle centerline to the next. The calculator will find the axle-group center from those numbers.

For cargo, measure to the center of the load, not the front edge. A toolbox that runs from 3 feet to 5 feet behind the coupler should be placed at 4 feet. A vehicle, pallet, water tank, or stack of bins should be placed where most of the weight sits.

Split the Load When Weight Is Spread Out

One big cargo number is useful for a rough estimate, but split loads are better when weight is spread around the trailer. Add separate load blocks for the heavy pieces instead of treating the whole deck like one item. A common utility trailer load might become:

• Tool chest: 250 lb at 3 ft.
• ATV front axle area: 500 lb at 8 ft.
• ATV rear axle area: 500 lb at 11 ft.
• Fuel and recovery gear: 120 lb at 13 ft.

That split tells you more than a single 1,370 lb entry because the front and rear portions of the load have different leverage on the hitch.

Reading the Sway Risk

The sway score is based mostly on tongue-weight percentage. If the estimate falls below the normal range for the trailer type, the risk climbs quickly because the trailer is carrying too much of its weight behind the axle group.

A low score does not mean the trailer is automatically safe. Tires, suspension, speed, wind, road conditions, hitch setup, load security, and tow-vehicle ratings still matter. The calculator is best used as a planning tool: move heavy cargo forward or rearward on paper before you do the harder work on the trailer deck.

What to Do With the Result

If tongue weight is light, move dense cargo forward in small steps and recalculate. Toolboxes, water, fuel, spare tires, generators, and battery boxes can change balance more than bulky but light cargo.

If tongue weight is heavy, move cargo rearward carefully. The goal is not to make the hitch light; it is to land in the target range while staying inside the trailer's GVWR, axle ratings, tire ratings, hitch rating, and tow-vehicle limits.

When the calculator looks right, measure the real trailer. A simple tongue weight scale or a public truck scale is still the final check before towing at highway speed.
